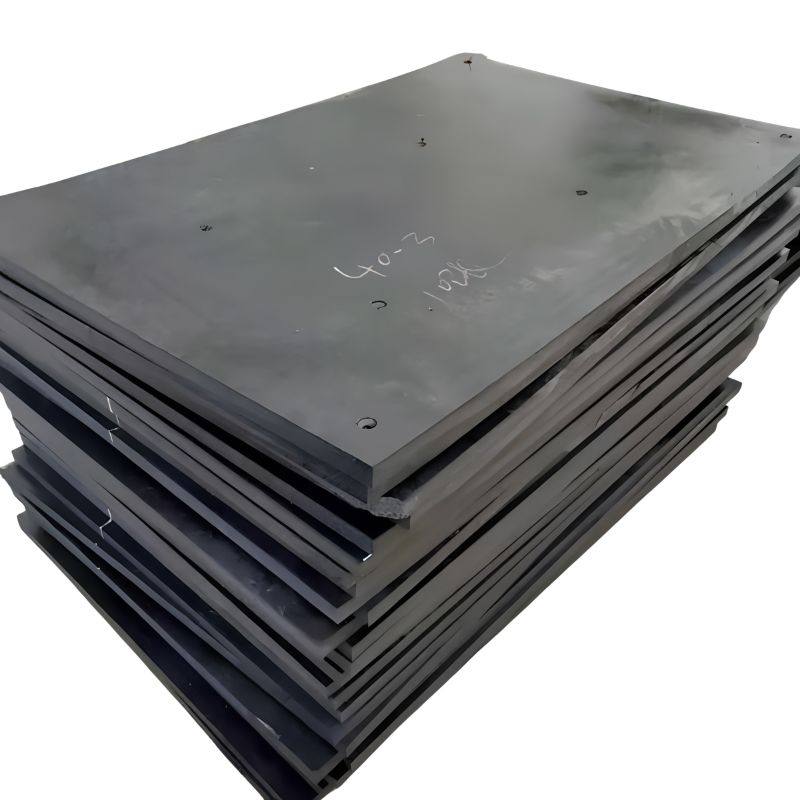

UHMWPE Coal Bunker Liners

Product Parameters

Reliable Internal Protection for Bulk Material Handling Equipment

Coal handling systems depend on stable material flow. When wet coal, fines, dust, or mixed-size particles cling to steel surfaces, the result may be arching, bridging, restricted discharge, and unplanned cleaning work. These molded UHMWPE lining panels are designed for the internal walls of raw coal bunkers, storage hoppers, transfer chutes, and downpipes. Their low-friction surface helps bulk solids move more freely while creating a durable sacrificial barrier between abrasive material and the equipment’s steel structure.

For operators seeking a practical alternative to manganese steel or stainless-steel lining, UHMWPE Coal Bunker Liners provide a lighter and easier-to-handle solution. The material is compression molded from ultra-high molecular weight polyethylene with a molecular weight range of 3–5 million. This grade is widely selected for mining-related applications where repeated sliding abrasion, particle impact, moisture, and dust are part of normal operating conditions.

Designed to Reduce Sticking, Blockage, and Wear

The operating surface has a dynamic friction coefficient of 0.07–0.11. In service, this self-lubricating behavior reduces resistance between the liner and conveyed material. Damp coal and fine powder are less likely to adhere to the panel face than on rough or corroded metal surfaces. By improving slide characteristics at bunker walls, hopper cones, and chute transitions, the lining can help reduce the frequency of manual cleaning and support more consistent discharge.

Wear resistance is equally important in impact zones. Coal, ore, aggregate, and other granular materials can repeatedly strike loading points and flow across chute bottoms. UHMWPE has strong resistance to abrasive sliding wear and performs well under impact. Unlike many rigid materials, it retains useful toughness in low-temperature conditions and is less prone to brittle cracking within its stated operating range of -40°C to +80°C. Properly selected liner layouts can protect the underlying steel shell and extend maintenance intervals for high-wear equipment.

Key Performance Benefits

• High wear and impact resistance: Suitable for equipment exposed to falling coal, ore, crushed stone, and abrasive particles. The liner helps shield bunker, hopper, and chute steelwork from direct material attack.
• Low-friction, self-lubricating surface: Supports smoother material movement and helps mitigate sticking, buildup, arching, and blockage caused by wet coal or powdery feed.
• Very low moisture absorption: With water absorption of ≤0.01%, the material remains dimensionally stable in humid conditions and does not rust.
• Corrosion resistance: The polymer resists many acid, alkali, dust, and moisture-related environments encountered in mines, power plants, and processing facilities.
• Lower installation handling burden: Compared with steel lining plates, UHMWPE panels are lighter, making transport, positioning, and replacement more manageable during shutdown work.

Custom Machining for Existing Equipment Geometry

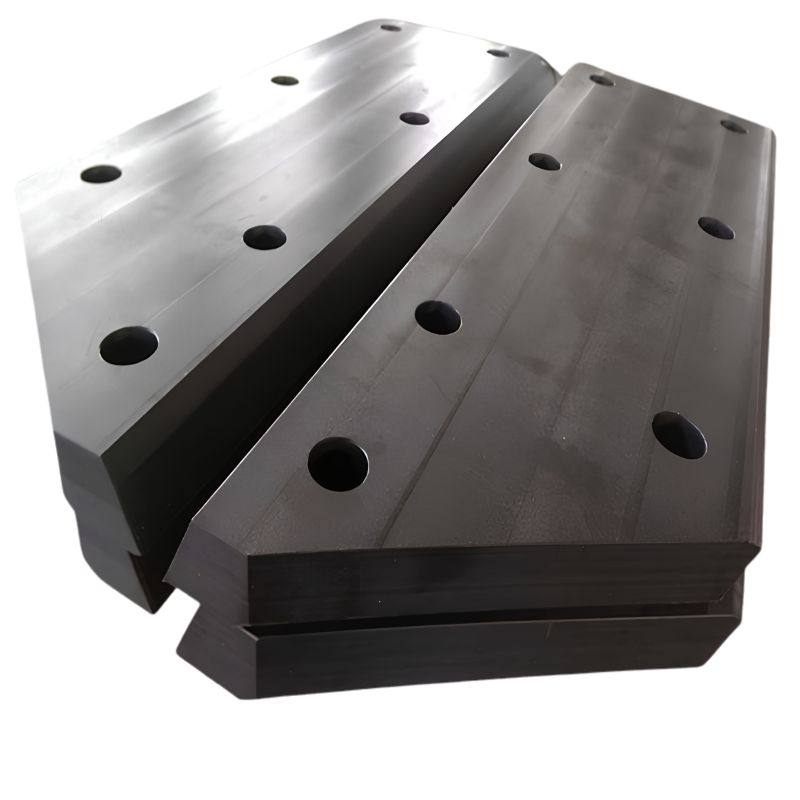

Every bunker and chute has different dimensions, transition angles, fixing points, and wear patterns. Panels can therefore be supplied in customized sizes and processed with countersunk bolt holes for mechanical fastening. Countersinking allows bolt heads to sit below the working face, avoiding unnecessary contact with moving material. The sheets may also be cut, bent, or fabricated into curved and U-shaped sections for rounded bunker walls, pipe sections, corners, and irregular equipment profiles.

For underground coal operations, material selection must reflect site safety requirements. In addition to the standard wear-resistant grade, antistatic and flame-retardant antistatic options are available. The double-property grade is intended for applications where explosion-prevention considerations require an antistatic, flame-retardant lining solution. Final grade selection should be verified against the operating environment, applicable mine regulations, and the project’s technical specifications.

Installation Considerations

1. Inspect the substrate: Remove loose rust, old failed lining, accumulated material, and protrusions from the steel surface before fitting new panels.
2. Confirm panel layout: Position liner joints away from the most severe impact area where possible and account for the direction of material flow.
3. Use countersunk mechanical fasteners: Bolt fixing is commonly used to secure the liner while keeping the wear surface relatively smooth.
4. Allow for shaped sections: Use curved, folded, or U-shaped parts where straight sheets cannot follow the equipment contour effectively.
5. Inspect during routine maintenance: Check fasteners, joints, and localized impact areas regularly, particularly after changes in feed size or loading conditions.

Typical Application Areas

UHMWPE Coal Bunker Liners are used where powder, granules, and bulk solids must be stored, discharged, or transferred with less sticking and less equipment wear. In underground coal mines, they are applied to raw coal bunkers, buffer bins, coal chutes, and drop pipes; flame-retardant antistatic panels can be selected for suitable explosion-sensitive environments. In thermal power plants, the liners are used in raw coal bunkers, dry coal shed hoppers, and coal conveying chutes to help control coal dust adhesion and discharge restrictions.

Mining and aggregate operations use these panels in ore bins, aggregate hoppers, crusher feed chutes, and transfer points exposed to sharp or abrasive material. Additional uses include metallurgical powder bins, sand and gravel hoppers, grain storage bins, and dump truck body liners. For each application, liner thickness, fastening pattern, panel form, and material grade should be matched to the actual load, impact energy, particle size, and operating temperature.

Manufacturing and Supply Support

Dezhou Yiyuan New Material Technology Co., Ltd. specializes in rubber and plastic products, including UHMWPE sheets, wear-resistant lining panels, rollers, machined special-shaped parts, PE sheets, PP sheets, nylon products, polyurethane products, and customized components. The company supports processing requirements such as cutting, drilling, countersinking, bending, and shaped-part fabrication to help customers fit lining materials to their existing equipment.

For a dependable lining project, provide bunker or chute drawings, internal dimensions, material type, temperature range, impact location, and required safety grade during inquiry. This information enables a more appropriate panel configuration and helps ensure that the finished liner is suited to the real conditions of bulk material storage and conveying equipment.
