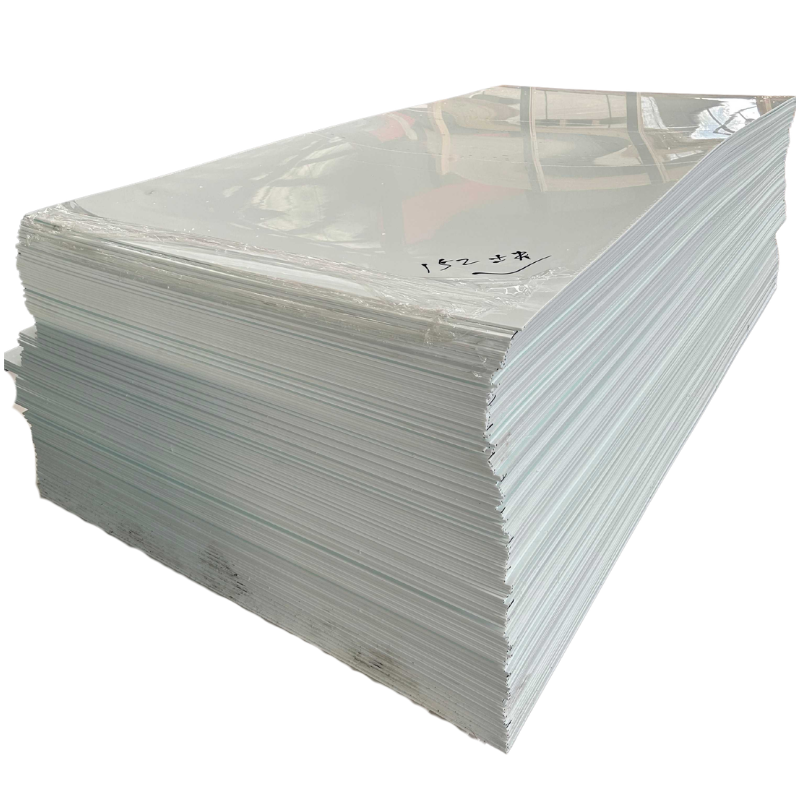

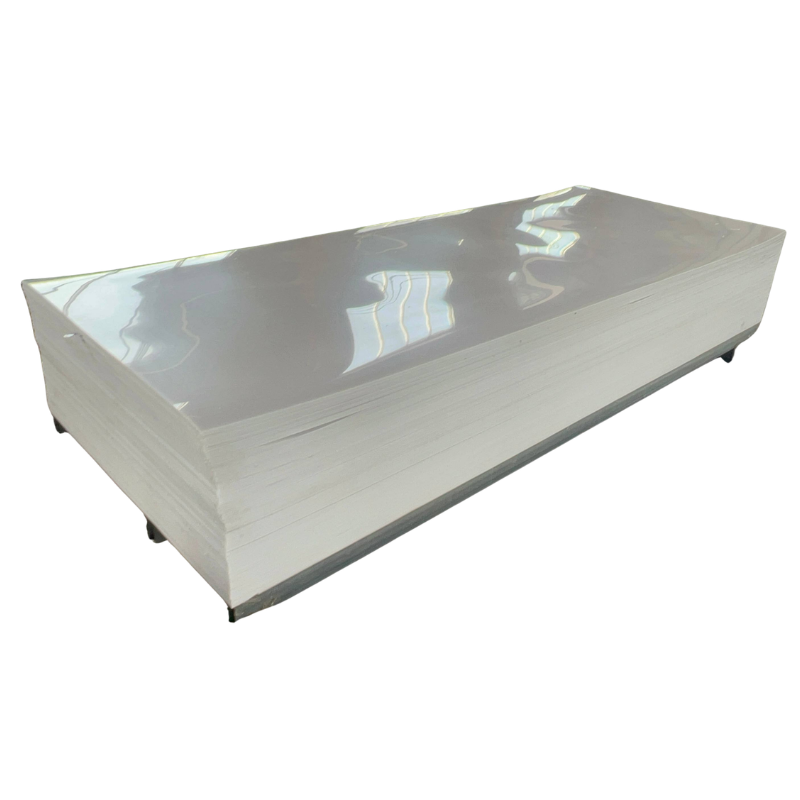

PE Sheet

Product Parameters

Material Performance, Fabrication, and Industrial Uses

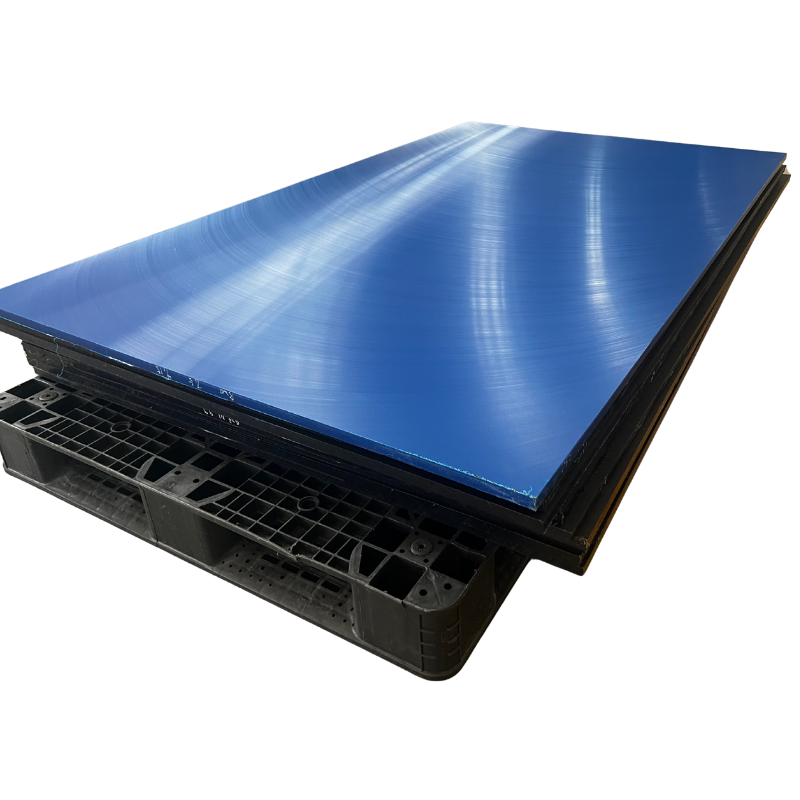

This polyethylene board is an extruded thermoplastic material designed for practical industrial fabrication and long-term service in demanding working environments. The natural material is milky white and semi-transparent, while black, blue, green, yellow, and other colors can be supplied for identification, visual management, or project-specific design. With its low density, smooth finish, and reliable toughness, a PE Sheet offers an efficient alternative where corrosion-prone metals or more brittle rigid plastics are unsuitable.

Manufactured from polyethylene resin, the board is lightweight, non-toxic, and odorless. Suitable grades can be supplied for food-related and water-contact applications where appropriate material selection is required. Its very low water absorption of ≤0.01% helps maintain stable performance in wet conditions. Unlike metal plates, it does not rust; unlike many conventional rigid boards, it is less likely to crack after repeated impacts or exposure to low temperatures.

Impact Resistance for Everyday Industrial Handling

A key advantage of this polyethylene sheet is its ability to absorb impact without becoming easily brittle. The material retains useful toughness at low temperatures and has an elongation at break of ≥250%, supporting applications exposed to repeated contact, vibration, loading, or accidental knocks. This makes it particularly useful for protective panels, machine pads, support pads, outdoor work pads, and equipment-facing surfaces that must tolerate routine handling rather than only static loads.

The tensile yield strength of 21–25 MPa provides a balanced combination of rigidity and flexibility. In use, the board can conform to many installation needs while remaining sufficiently robust for liners, guards, spacers, and general industrial components. For projects involving concentrated loads, unsupported spans, or structural design requirements, thickness and fixing methods should be selected according to the actual operating conditions.

Resistance to Moisture and Chemical Exposure

The board is resistant to common acid, alkali, and salt environments, making it a dependable choice for wastewater facilities, water storage areas, aquaculture systems, and light chemical-duty installations. Its low moisture uptake is especially valuable where frequent washing, splashing, humidity, or immersion may affect other materials. A properly selected PE Sheet can help reduce maintenance concerns associated with corrosion, swelling, and moisture-related deterioration.

The stated long-term operating temperature range is -70°C to +80°C. This broad range supports use in refrigerated environments, outdoor installations, and many normal industrial processes. However, users should evaluate the specific medium, operating temperature, pressure, mechanical loading, and cleaning procedure before final material selection, particularly in applications involving aggressive chemicals or continuous elevated-temperature exposure.

Low-Friction Surface and Wear Benefits

The smooth surface provides a low coefficient of friction and useful self-lubricating behavior. Bulk solids, packaging, and many conveyed materials are less likely to adhere to the surface, helping improve flow in hoppers, chutes, and bins. For abrasion-related duties, polyethylene board provides stronger wear performance than standard PP and conventional PVC board in many routine applications. It is therefore widely used as a liner where reduced drag, easier cleaning, and surface protection are important operational goals.

• Hopper and chute liners: support smoother material movement and reduce surface wear.
• Machine slides and spacer blocks: provide low-friction contact surfaces for moving or supported parts.
• Protective boards: shield equipment, walls, tanks, and work surfaces from routine impact and abrasion.
• Support and outrigger pads: offer lightweight, moisture-resistant separation between equipment and ground surfaces.

Simple Processing and Custom Supply Options

This material is easy to cut, drill, heat bend, and thermally weld, allowing installers and fabricators to create practical site-specific parts without unnecessary complexity. Its lower weight can make transportation, positioning, and installation more convenient than comparable metal components. Boards may be fabricated into liners, covers, pads, strips, guards, and shaped parts to suit equipment layouts or installation drawings.

Color and size customization supports clearer area identification and more efficient site management. For example, colored boards may be selected to distinguish production zones, water-system components, safety-related protection panels, or different machine positions. Customers requiring enhanced functions can discuss options such as food-grade PE board, fiberglass-reinforced PE board, flame-retardant polyethylene board, or flame-retardant PE board according to the intended application and relevant project requirements.

Typical Application Areas

The material is suited to a broad range of industrial, food-processing, logistics, water-treatment, and aquaculture applications. Its combination of corrosion resistance, toughness, processability, and low water absorption makes it practical for both new equipment manufacture and maintenance replacement work.

1. Wastewater tank liners, water tank pads, and PE anchoring boards.
2. Hopper, silo, and chute liners for material-handling equipment.
3. Food equipment pads, guide surfaces, and non-metallic protective components.
4. Aquaculture boards and moisture-resistant panels for wet operating areas.
5. Mechanical slide blocks, wear pads, support pads, and equipment guards.
6. Outdoor work pads and general-purpose protective boards for logistics operations.

Reliable Material Support from an Experienced Manufacturer

Dezhou Yiyuan New Material Technology Co., Ltd. specializes in rubber and plastic products, including UHMWPE sheets, UHMWPE wear-resistant liners, UHMWPE rollers, machined UHMWPE parts, PE boards, PP boards, nylon products, polyurethane products, and custom-shaped components. The company supports customers who need dependable industrial plastics for fabrication, replacement parts, and application-focused designs.

With a service principle centered on quality, integrity, and dependable contract performance, the company works to provide suitable material solutions for varied operating environments. When specifying a PE Sheet, customers are encouraged to provide the application, dimensions, required color, processing needs, working medium, and service conditions so that the most appropriate board configuration can be selected.
