PE Sheets for Industrial Fabrication

Product Parameters

Material Performance, Fabrication Value and Applications

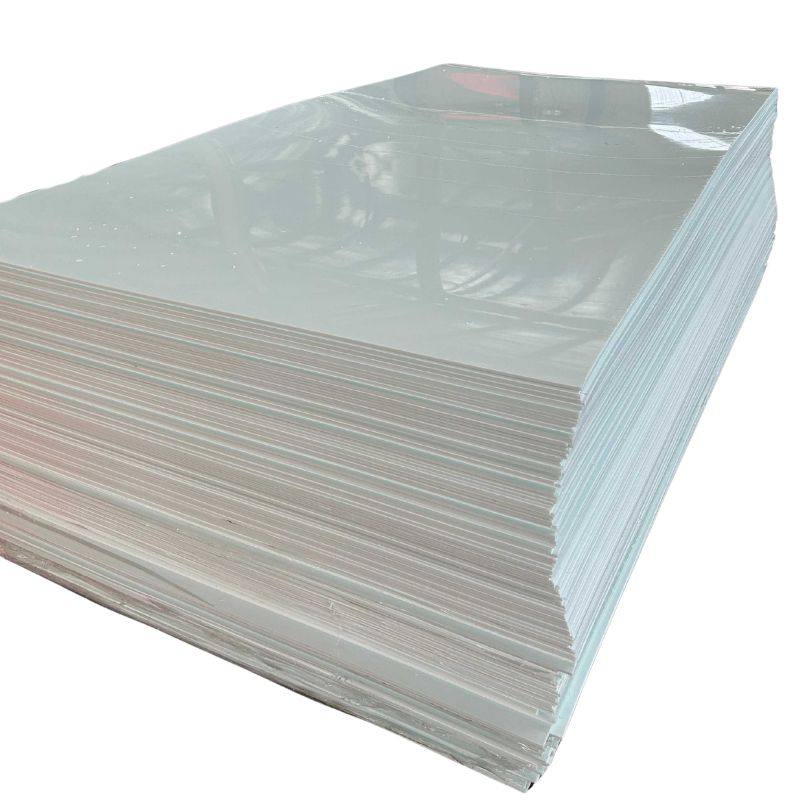

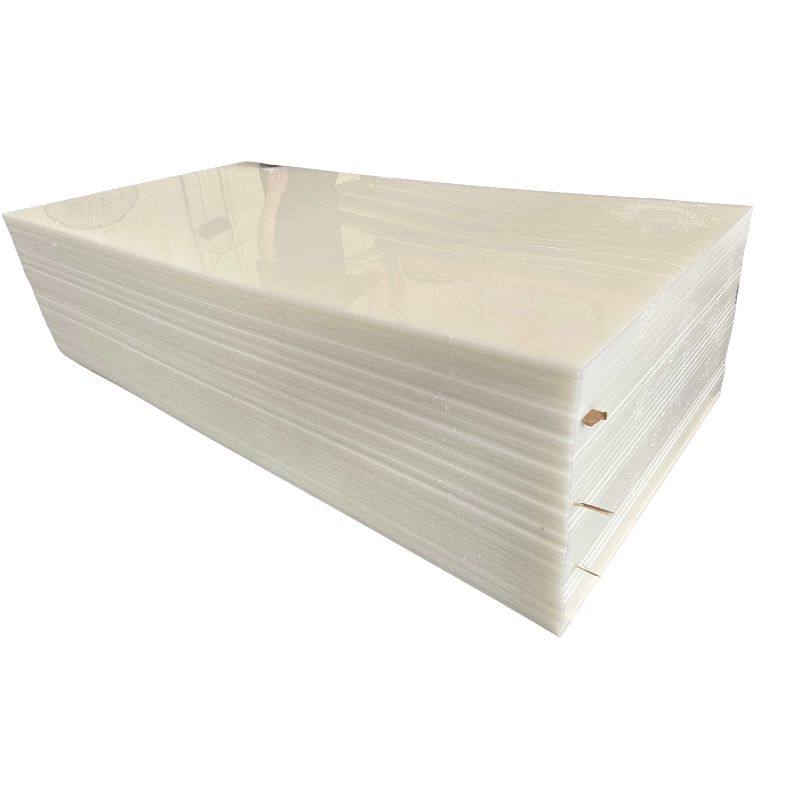

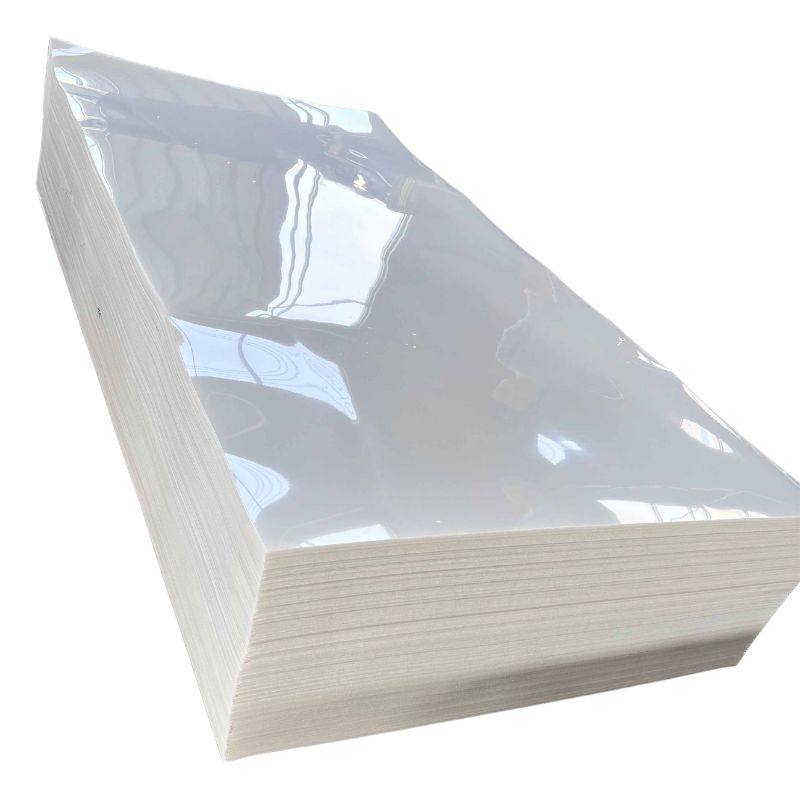

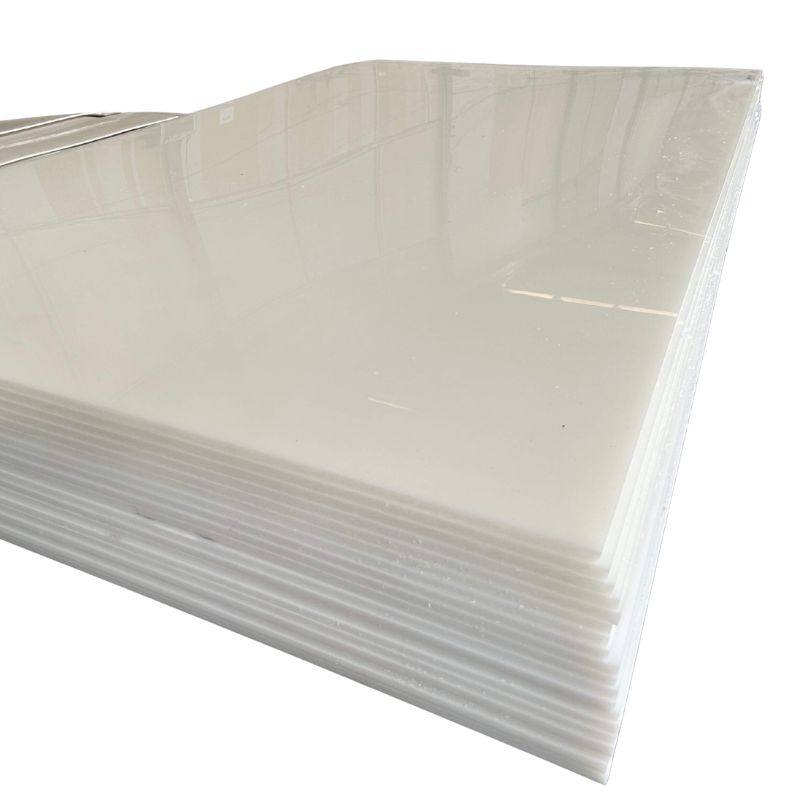

PE Sheets for Industrial Fabrication are extruded thermoplastic panels made from polyethylene resin. Their natural appearance is milky white and semi-transparent, while black, blue, green, yellow, and other colours can be supplied for visual identification, equipment matching, or site organisation. The material combines low weight with practical toughness, allowing fabricators and maintenance teams to produce durable components without the handling burden associated with metal plate.

For industrial projects, material selection is rarely based on one property alone. A useful sheet must withstand routine contact, moisture, cleaning agents, and repeated handling while remaining practical to cut and install. With water absorption of no more than 0.01%, these polyethylene panels are well suited to wet-duty environments where swelling, rust, and moisture-related deterioration can complicate the use of conventional materials. Their specified 21–25 MPa tensile yield strength and minimum 250% elongation at break support reliable performance in fabricated guards, liners, pads, and protective parts.

Toughness for Repeated Industrial Use

Polyethylene is valued for its ability to absorb impact rather than crack suddenly under routine knocks. This is especially relevant for warehouse protection, transport fixtures, chutes, machine interfaces, and outdoor work platforms where impacts may occur repeatedly. The sheet retains useful toughness at low temperatures, helping reduce the risk of brittle fracture in cold storage, winter installation, and other low-temperature operating conditions. Its stated long-term service range of -70°C to +80°C provides a clear basis for evaluating suitability against the actual temperature of the installation.

Resistance to Moisture and Common Chemical Exposure

In wastewater, aquaculture, water storage, and lightly chemical service, a non-rusting sheet material can simplify maintenance planning. PE board offers resistance to acids, alkalis, and salts in appropriate service conditions. Its very low water uptake also makes it a practical option for tank pads, pool linings, anchoring panels, and splash-zone protection. Chemical compatibility should nevertheless be checked against the concentration, temperature, exposure duration, and specific process media before final material approval. This disciplined approach is particularly important for continuous immersion and chemically aggressive systems.

Low-Friction Surface for Linings and Wear Parts

The smooth, self-lubricating surface helps reduce drag where bulk materials, packaged goods, or moving equipment contact the sheet. Materials are less likely to adhere to the panel face, which can assist flow through hoppers and chutes and make routine cleaning more efficient. In many general wear applications, polyethylene provides better wear resistance than standard PP and ordinary PVC sheet. It is therefore frequently selected for sliding blocks, wear pads, equipment guards, hopper linings, and support pads that need a balance of abrasion resistance, impact tolerance, and economical fabrication.

Straightforward Processing and Installation

A major advantage of PE Sheets for Industrial Fabrication is their workshop-friendly processing. The panels can be cut, drilled, heat bent, and thermally welded to create flat liners, fabricated tanks, guards, spacers, and custom-shaped components. Their low weight supports safer handling during on-site fitting and can reduce installation effort for large protective surfaces. Before fabrication, installers should confirm the required dimensions, fixing method, allowance for thermal movement, and any welding requirements. Proper support spacing and suitable fasteners are important to maintain a stable finished assembly.

Typical Fabrication Considerations

• Measure the working area carefully and allow for thermal expansion in long panels.
• Select fixing points and backing support according to panel size and service load.
• Use clean cutting and drilling practices to produce accurate edges and holes.
• Confirm welding procedures where liquid containment or sealed joints are required.
• Review chemical, temperature, and food-contact requirements before placing the order.

Suitable Sectors and End Uses

These sheets serve plant engineers, fabricators, maintenance contractors, food equipment builders, logistics operators, and water-treatment project teams. Common uses include wastewater tank liners, hopper and chute linings, water reservoir pads, outrigger support pads, machinery protection panels, aquaculture boards, PE anchor sheets, mechanical sliding blocks, food equipment backing pads, and outdoor tooling pads. The combination of low weight, resistance to corrosion, and easy machining makes the material particularly useful when a custom component is needed quickly without unnecessary structural complexity.

Material Options and Responsible Selection

Virgin HDPE board is non-toxic and odourless and may be considered for water supply and food-contact applications where the selected grade and finished product meet the applicable local requirements. Buyers should specify the intended use during enquiry so that the correct material option can be assessed. Requirements for food-grade PE sheet, glass fibre reinforced PE sheet, flame-retardant polyethylene sheet, or flame-retardant PE sheet should be discussed separately, as these applications can require different formulations, compliance documentation, and processing controls.

Manufacturing Support

Dezhou Yiyuan New Material Technology Co., Ltd. specialises in rubber and plastic products, including UHMWPE sheets, wear-resistant UHMWPE liners, UHMWPE rollers, custom UHMWPE parts, PE sheets, PP sheets, nylon products, polyurethane products, and machined special-shaped components. The company’s service principle is founded on product quality, sincere sales support, and dependable contract performance. This production background enables customers to discuss both sheet supply and practical downstream fabrication needs with a supplier experienced in industrial polymer applications.

For an effective quotation, provide the required dimensions, thickness, colour, quantity, operating temperature, exposure media, fabrication drawings, and whether the part will be used for lining, sliding, protection, or food-related equipment. Clear application information helps ensure that the selected polyethylene sheet is appropriate for the intended duty and that the finished component delivers dependable value over its service life.
