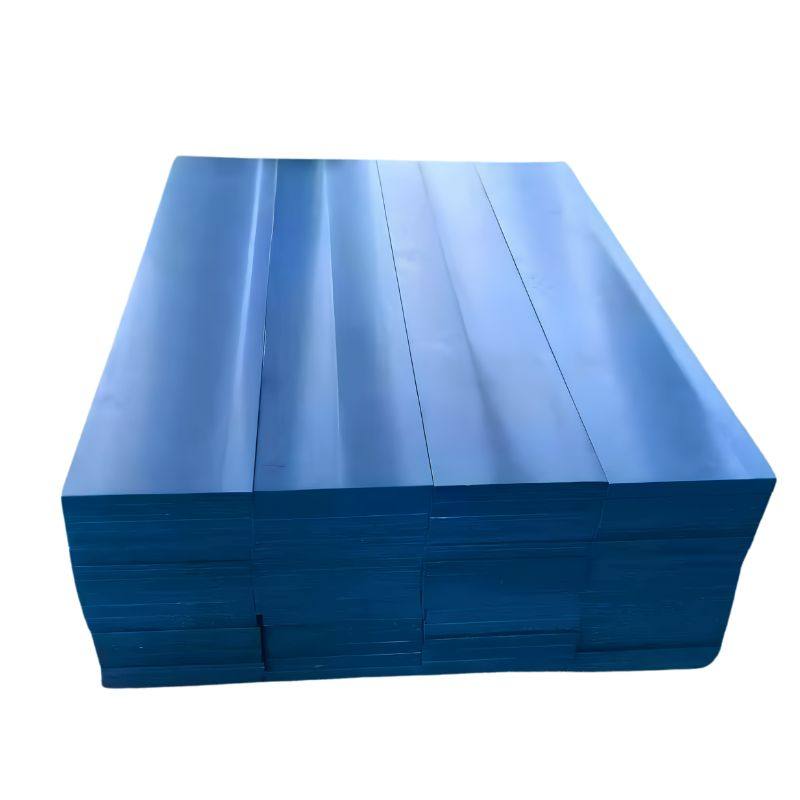

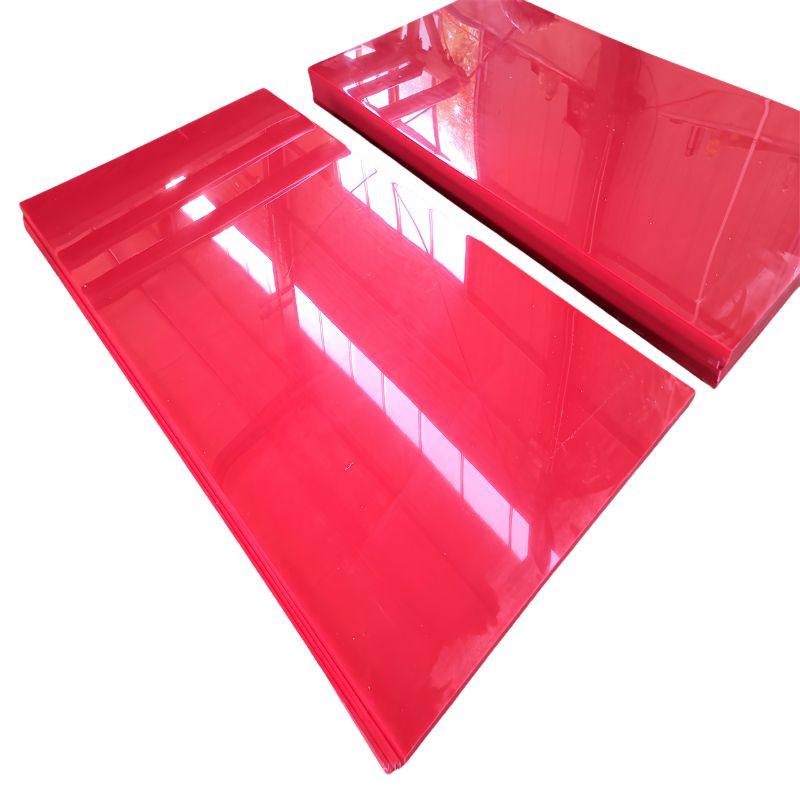

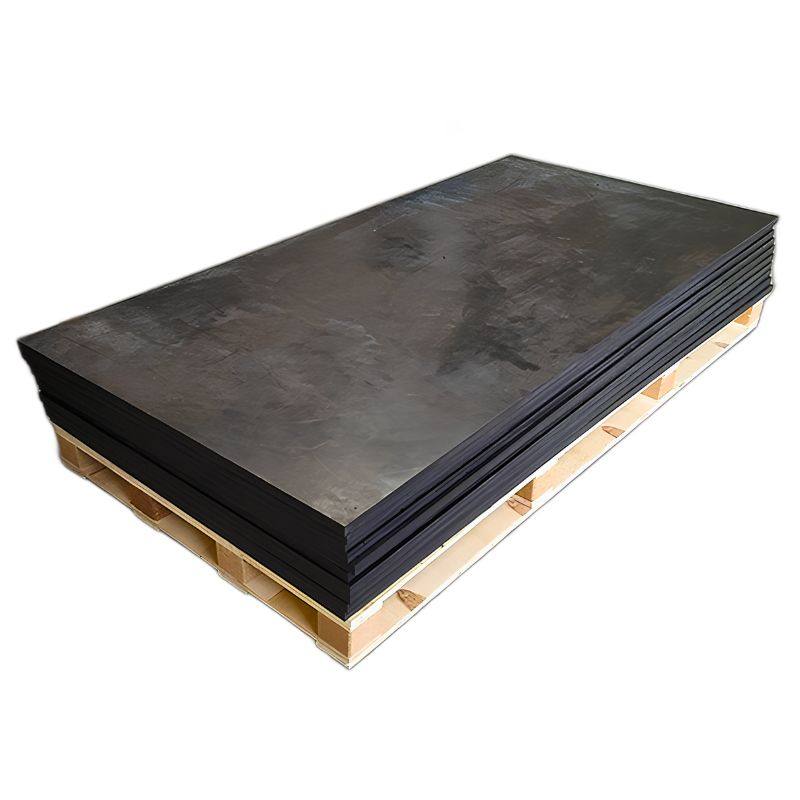

UHMWPE Conveyor Wear Liners

Product Parameters

Wear Protection for Reliable Bulk Material Handling

Ultra-high molecular weight polyethylene is an engineering plastic manufactured from polyethylene resin with a molecular weight above 1.5 million. The 3–5 million molecular-weight grade used for these liner sheets is selected for demanding sliding and impact conditions. It combines high abrasion resistance, excellent impact toughness, very low friction, and minimal water absorption in one practical material. For operators dealing with slow material flow, damaged steel surfaces, recurring blockages, or frequent liner replacement, it provides a dependable way to improve the contact surface of handling equipment.

In conveyor transfer areas, chutes, hoppers, bins, and loading points, bulk solids can abrade surfaces continuously while also creating impact loads. Coal, ore, sand, gravel, aggregates, and other materials may stick to rough or corroded steel, increasing carryback and causing costly interruptions. A smooth polyethylene wear surface helps material move more freely. Its self-lubricating behavior reduces drag without relying on added lubricants, supporting cleaner discharge and more consistent material flow.

Key Performance Benefits

Exceptional Abrasion Resistance

The material offers wear performance beyond carbon steel, nylon, and standard PE sheet in abrasive service. Its low dynamic friction coefficient of 0.07–0.2 allows material to slide over the surface with less resistance. This is particularly valuable where fines, wet bulk material, or irregular particles tend to build up. By reducing adhesion and friction, the liner can help limit bridging, hanging, and blockage inside storage and transfer equipment.

High Impact Toughness

Unlike brittle materials that can crack when struck by falling aggregate or ore, UHMWPE retains strong impact resistance. It remains tough in low-temperature environments and is less prone to brittle fracture under sudden loading. This characteristic makes it suitable for chute walls, impact zones, hopper linings, port equipment, and other areas where material drops or repeated contact are expected.

Resistance to Moisture and Chemical Media

With water absorption of no more than 0.01%, the sheet is well suited to humid, wet, and wastewater-related environments. It resists corrosion caused by acids, alkalis, and salts, unlike unprotected metal surfaces that may deteriorate in damp or chemically exposed locations. This property supports long-term use in wastewater treatment equipment, chemical handling areas, washdown zones, and outdoor installations where moisture cannot be avoided.

Typical Applications

These abrasion-resistant polyethylene components are specified where a durable, low-friction contact layer is needed. Common applications include:

• Coal bunkers, silos, hoppers, and chutes to reduce material sticking and blockage.
• Mining and aggregate operations for liners in transfer points, ore chutes, sand handling equipment, and screening systems.
• Conveyor systems requiring wear strips, side guides, slide surfaces, impact-zone protection, or custom machined parts.
• Port and marine facilities for fender panels and wear surfaces exposed to impact, moisture, and salt-containing conditions.
• Wastewater treatment equipment requiring corrosion-resistant boards and protective linings.
• Food machinery for pads, guides, and low-friction wear components where an appropriate application design is required.
• Construction machinery for outrigger pads and other protective support elements.
• Sports and industrial equipment for training rebound panels, sliders, spacer blocks, and other wear-resistant components.

Fabrication and Installation Flexibility

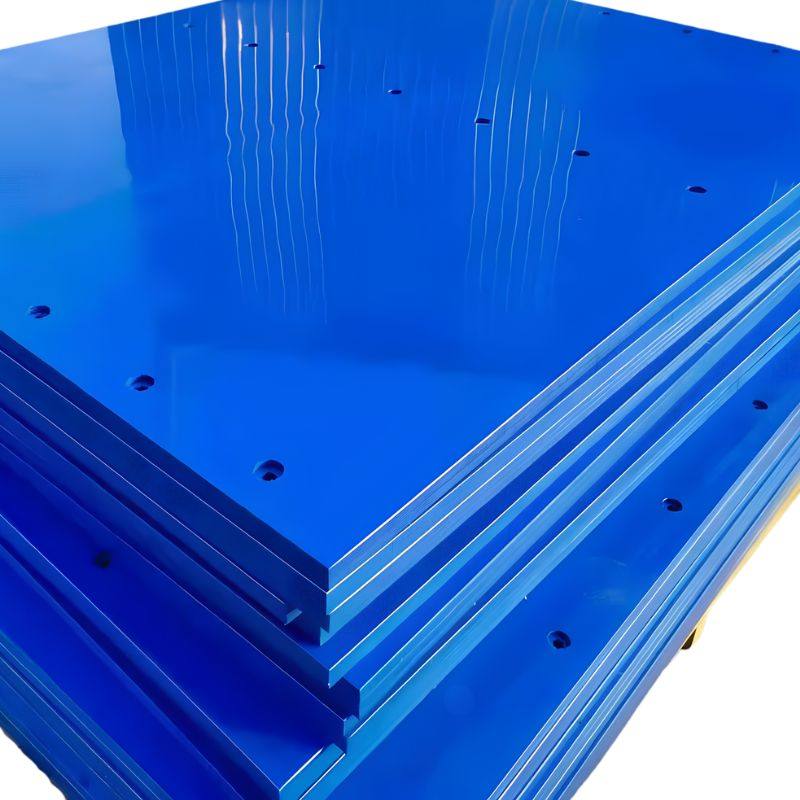

A major practical advantage is the material’s ease of fabrication. Sheets can be cut, drilled, slotted, thermally bent, and welded to meet equipment-specific requirements. Custom dimensions, colors, and logo engraving can also be arranged. This flexibility allows maintenance teams and equipment manufacturers to specify liners that follow chute contours, accommodate fixing points, protect localized wear zones, or replace worn panels without redesigning the entire structure.

For a reliable installation, the liner should be measured according to the actual equipment geometry and material flow direction. Fastener locations, panel joints, material drop height, and expected impact points should be considered before fabrication. In severe impact areas, selecting an appropriate thickness and providing adequate mechanical support are important. A properly fitted liner can protect the base structure while maintaining a smooth, uninterrupted sliding path.

Important Selection Considerations

UHMWPE is designed for wear, impact, and low-friction service, but it should be selected with realistic operating conditions in mind. Its heat resistance is moderate, so it is not recommended for high-temperature environments beyond its stated service range. The material also has relatively low hardness compared with metallic surfaces; sharp, hard objects can scratch the sheet face. These characteristics should be reviewed when handling hot material, sharp scrap, or highly concentrated point loads.

Dezhou Yiyuan New Material Technology Co., Ltd. specializes in rubber and plastic products, including UHMWPE sheets, wear liners, rollers, custom-shaped UHMWPE parts, PE sheets, PP sheets, nylon products, polyurethane products, and machined special parts. The company follows a service principle built on quality-led products, honest sales support, and trustworthy contract performance. This approach helps customers source practical wear solutions for both standard replacement needs and customized industrial projects.
