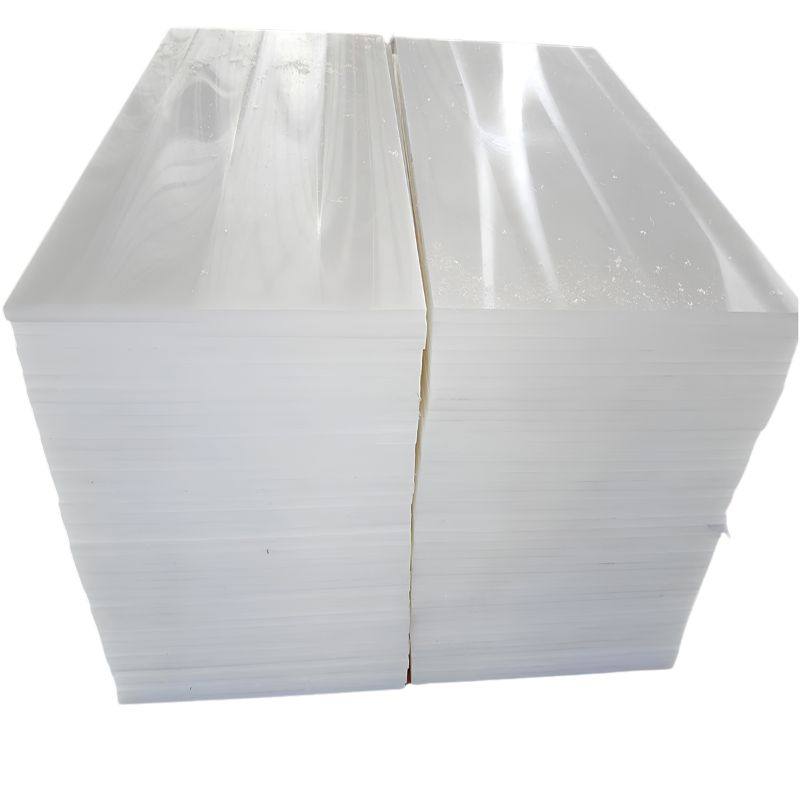

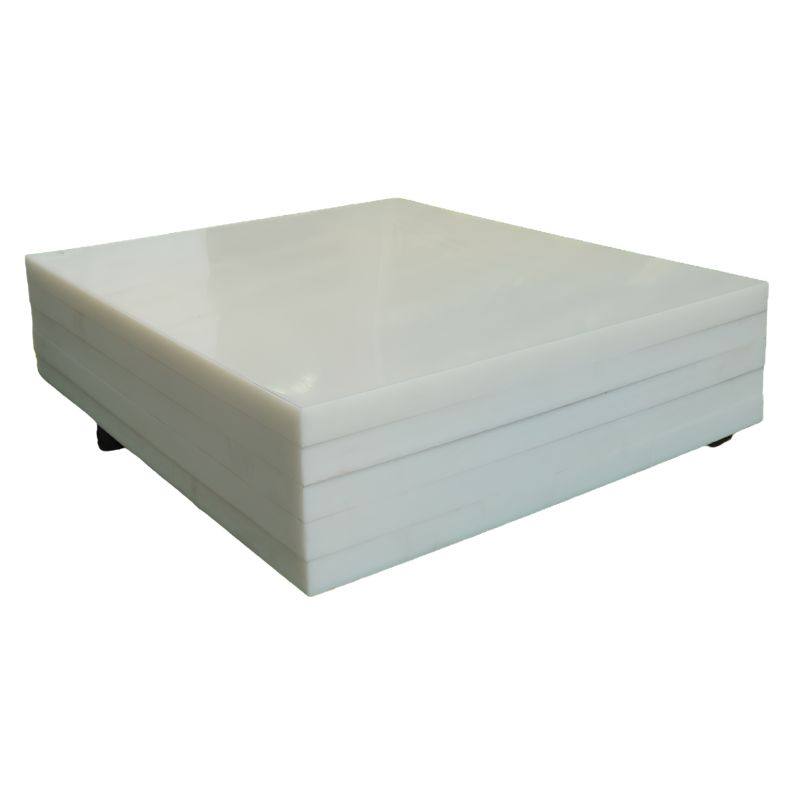

UHMWPE Dump Truck Bed Liners

Product Parameters

Detailed Description and Application Guidance

UHMWPE Dump Truck Bed Liners are engineered wear liners for equipment that repeatedly handles abrasive, wet, sticky, or impact-heavy bulk materials. Produced from ultra-high molecular weight polyethylene, this material combines a low-friction working surface with exceptional toughness. It is particularly effective where conventional steel surfaces encourage material carryback, create excessive wear, or add unnecessary vehicle weight. The smooth, self-lubricating surface helps material move more freely during discharge, supporting cleaner unloading and reducing the likelihood of residual buildup in the truck body.

For quarry operators, mining contractors, aggregate suppliers, coal yards, and transport fleets, liner selection is a practical maintenance decision. A properly specified liner can help protect the underlying dump body from abrasive contact while improving material flow. UHMWPE is also widely recognized as an engineering plastic for chutes, hoppers, silos, port facilities, food-processing equipment, and corrosion-prone environments. Its very low water absorption makes it suitable for humid conditions and wastewater-related installations where moisture can affect other materials.

Why Choose UHMWPE for Bulk Material Handling?

The defining benefit of a high molecular weight polyethylene liner is its ability to resist sliding wear while maintaining impact resilience. With a molecular weight of 3 million–5 million, the material is designed for demanding contact conditions rather than light-duty surface protection. Its dynamic friction coefficient of 0.07–0.20 contributes to a naturally slippery surface, allowing many bulk materials to release more easily than on rough steel or conventional plastic surfaces.

• Outstanding wear resistance: UHMWPE offers wear performance that exceeds carbon steel, nylon, and standard PE sheet in many sliding-abrasion applications. This helps extend the service life of exposed liner areas.
• High impact strength: The material absorbs repeated impacts effectively and remains tough at low temperatures, reducing the risk of brittle cracking in cold outdoor service.
• Low-friction, self-lubricating surface: Reduced surface drag can help limit sticking, bridging, and blockage when handling coal, sand, gravel, ore, soil, or other flow-sensitive materials.
• Chemical and moisture resistance: It resists many acids, alkalis, and salts, does not readily absorb water, and performs reliably in damp, wastewater, and chemical-contact environments.
• Low-temperature capability: Within the stated operating range of -269°C to 80°C, UHMWPE retains useful toughness in severe cold conditions.

Practical Fabrication and Installation Options

UHMWPE Dump Truck Bed Liners can be supplied as sheets and further processed to suit the geometry of a truck body, hopper, chute, or bin. The material can be cut, drilled, slotted, heat-bent, and welded. Custom colors, dimensions, and logo engraving are available for projects requiring identification or a coordinated equipment appearance. This processing flexibility supports both full-bed coverage and targeted protection in high-wear zones such as the floor, sidewalls, tailgate area, discharge points, and material impact sections.

Before installation, the working condition should be assessed carefully. Consider the material type, particle size, loading method, impact location, operating temperature, fastening design, and liner thickness required by the equipment. Panels should be fitted with allowance for thermal movement, and fasteners should be selected and positioned to match the service load and avoid creating catch points for bulk material. For complex body shapes or high-impact areas, project-specific fabrication details should be confirmed before production.

Typical Uses Beyond Dump Bodies

Although commonly selected for haulage and unloading equipment, ultra-high molecular weight polyethylene sheet is used across many industries because it addresses both wear and flow problems. A UHMWPE coal bunker liner or silo liner can help reduce material adhesion on internal walls. Wear plates for mines and aggregate yards protect surfaces exposed to sand, stone, and ore. The same material can also be fabricated into corrosion-resistant panels for wastewater treatment, marine fender boards for ports, pads for food machinery, outrigger support pads for construction equipment, and wear components such as sliders, blocks, and training rebound boards.

1. Mining and quarrying: truck beds, transfer chutes, hoppers, screens, and aggregate handling surfaces.
2. Coal and bulk storage: coal bunkers, material bins, silos, and discharge chutes where sticking or blockage is a concern.
3. Ports and marine operations: fender boards, sliding wear strips, and material-transfer protection.
4. Environmental and chemical service: wastewater treatment lining and moisture-resistant protective panels.
5. Food and general machinery: equipment pads, guides, wear strips, and custom machined components.

Important Material Considerations

Professional material selection should account for UHMWPE’s limits as well as its advantages. Its heat resistance is moderate, so it is not recommended for high-temperature environments exceeding the stated service range. In addition, the material does not have high surface hardness; sharp, hard objects may scratch the surface. These characteristics do not diminish its value in abrasion, impact, moisture, and low-friction applications, but they should be considered when evaluating severe heat exposure or sharp-point contact.

Manufacturing Support You Can Rely On

Dezhou Yiyuan New Material Technology Co., Ltd. specializes in rubber and plastic products, including UHMWPE sheets, UHMWPE wear-resistant liners, UHMWPE rollers, UHMWPE special-shaped parts, PE sheets, PP sheets, nylon products, polyurethane products, and custom-machined components. Our service principle is clear: quality comes first, service is founded on sincerity, and contractual cooperation is honored through trust. From standard sheet supply to customized liner fabrication, we focus on practical material solutions that suit real operating conditions.
