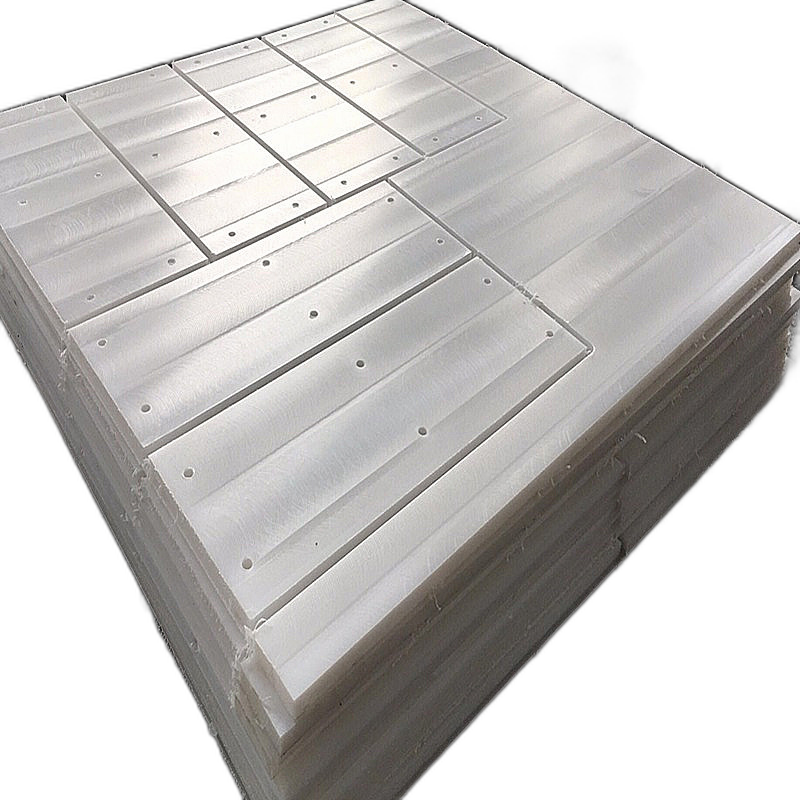

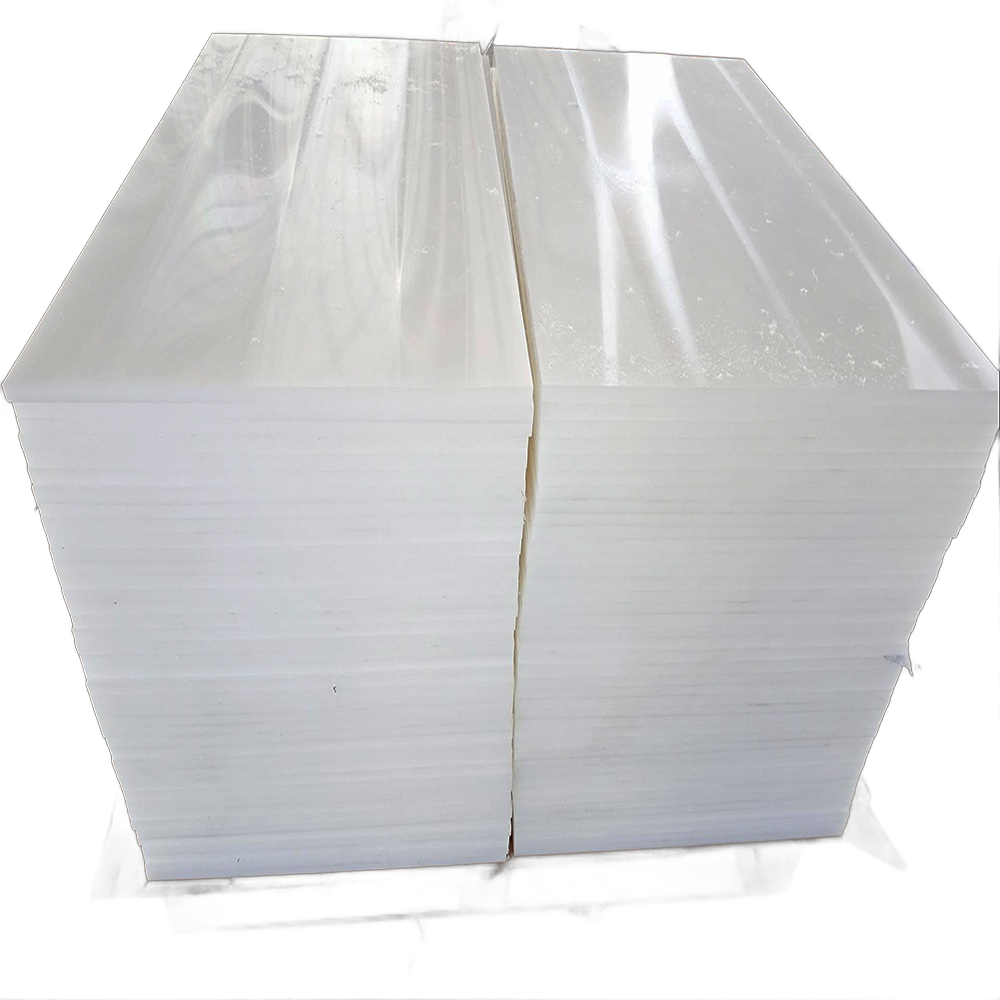

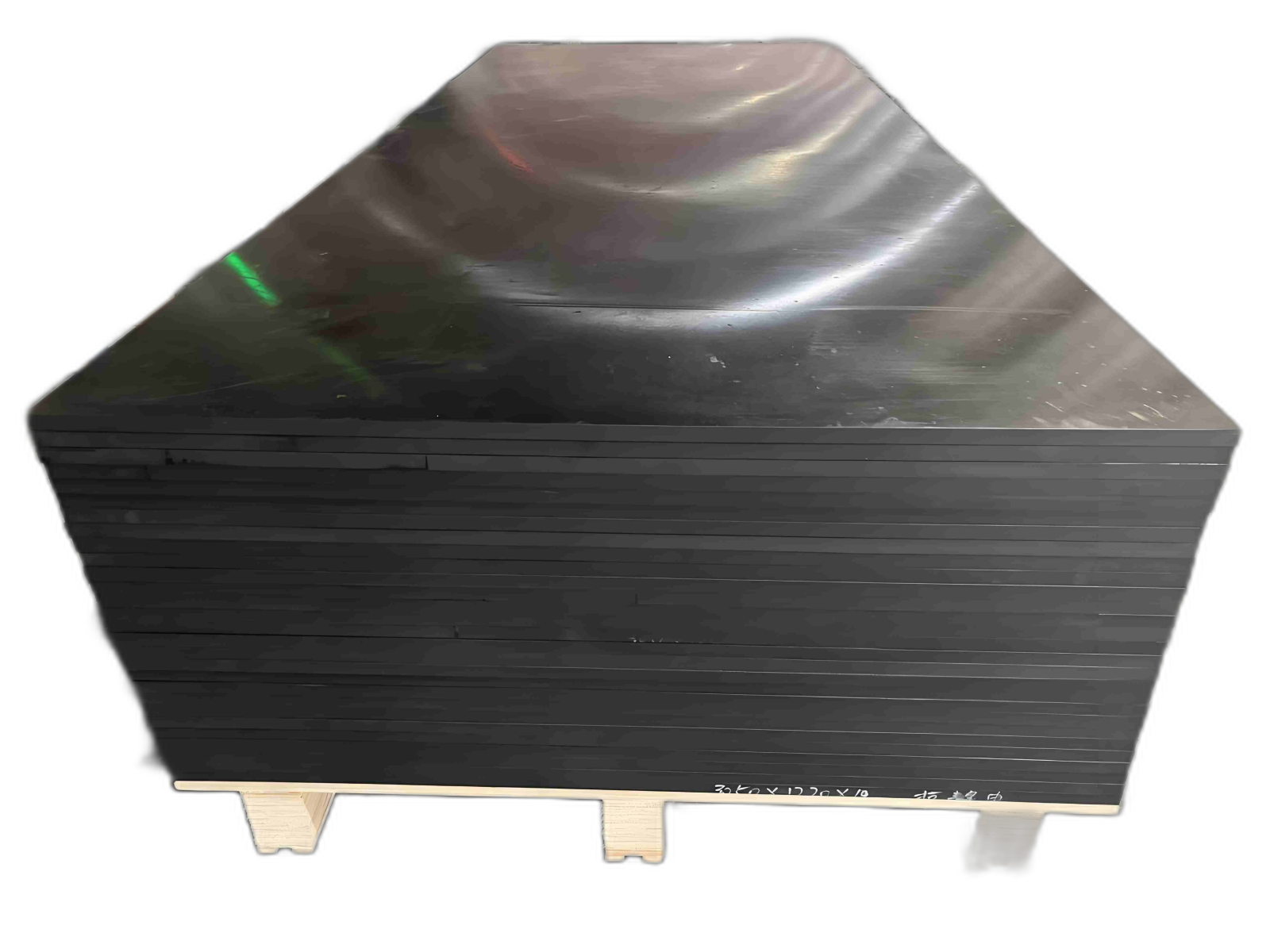

UHMWPE Outrigger Pads for Construction Machinery

Product Parameters

Manufactured from ultra-high molecular weight polyethylene, this engineering-grade material is designed for demanding applications where wear resistance, impact performance, moisture resistance, and smooth sliding properties are essential. The following values are based on the supplied material specifications.

Material Performance, Applications, and Custom Processing

Reliable Ground Protection for Mobile Equipment

Construction equipment often operates on uneven, wet, loose, or finished surfaces where stable outrigger contact is critical. UHMWPE pads help distribute support loads across a broader contact area while providing a durable, non-corrosive interface between machinery and the ground. These Outrigger pads for construction machinery are suitable for cranes, aerial work platforms, concrete pumps, lifting equipment, and other machines fitted with stabilizer legs.

Unlike materials that readily absorb moisture or deteriorate in damp working areas, UHMWPE has an extremely low water absorption rate of ≤0.01%. This characteristic supports dependable use in rainy outdoor environments, wastewater areas, ports, and locations where mud, standing water, or chemical exposure is common. The material does not rust, and its low density of 0.94–0.96 g/cm³ makes pads easier to handle during setup, repositioning, and transport.

Wear Resistance and Low-Friction Benefits

UHMWPE is widely recognized as a practical wear material for industrial service. Its abrasion resistance exceeds that of carbon steel, nylon, and standard PE sheet in many sliding and material-contact applications. With a dynamic friction coefficient of 0.07–0.20, the surface provides inherent self-lubrication. This can reduce drag, minimize surface sticking, and support smoother movement where components contact abrasive materials.

For equipment owners and maintenance teams, the same material advantages extend beyond stabilizer pads. UHMWPE sheets are frequently specified as wear liners for mining operations, aggregate plants, sand and gravel yards, ports, food machinery, and wastewater systems. In hoppers, chutes, bunkers, and silos, a low-friction liner can help reduce material adhesion and bridging, improving material flow while protecting the underlying steel structure from wear.

Impact Strength for Challenging Job Sites

High impact resistance is another key reason to select this material. UHMWPE remains tough under repeated impacts and retains useful resilience in low-temperature conditions, reducing the risk of brittle cracking when equipment is deployed in cold climates. This is valuable for temporary work sites where pads may be moved frequently, exposed to dropped tools, or subjected to impact from machinery setup and removal.

The material’s broad operating range of -269°C to 80°C supports use in severe cold environments with limited performance loss. However, UHMWPE is not intended for high-temperature service. Prolonged exposure above its recommended temperature range can affect performance, so users should assess the actual surface temperature, nearby heat sources, and duty cycle before specifying the material.

Chemical Resistance and Moisture Stability

UHMWPE offers good resistance to acids, alkalis, salts, wastewater, and many chemical media. This makes it a practical choice where conventional metal pads or liners may corrode. It is especially relevant for chemical handling areas, sewage treatment facilities, marine facilities, and industrial plants where humid or contaminated conditions are unavoidable.

For Outrigger pads for construction machinery, this resistance helps maintain a clean, serviceable surface after contact with wet soil, slurry, or job-site contaminants. Regular inspection and cleaning are still recommended, particularly when pads are used on abrasive ground or in environments containing sharp debris. Keeping the contact surface free of embedded stones or metal fragments helps protect both the pad and the supported surface.

Flexible Fabrication for Equipment Requirements

UHMWPE sheet can be cut, drilled, grooved, hot-bent, and welded to suit specific equipment layouts. Pads can be supplied in custom dimensions, colors, and shapes, with options for engraved logos where required. This flexibility allows buyers to match pad geometry to outrigger feet, storage brackets, lifting handles, connection holes, or site-identification requirements.

• Custom-cut pads for different stabilizer foot sizes and equipment types.
• Drilled or grooved designs for handles, fastening points, or improved handling.
• Wear liners for coal bunkers, feed bins, chutes, hoppers, and storage silos.
• Machined components such as sliders, wear blocks, guide parts, and protective pads.
• Colored or logo-marked parts for fleet identification and application management.

Important Selection Considerations

Although UHMWPE delivers excellent wear and impact performance, it has limitations that should be considered during product selection. Its heat resistance is moderate, making it unsuitable for high-temperature operating conditions. In addition, the material is not highly hard; sharp or hard objects can scratch its surface. These points do not normally prevent use in outdoor equipment support applications, but they should be evaluated against the specific work environment.

Before use, confirm that pad dimensions, thickness, ground conditions, equipment load, and outrigger foot geometry are appropriate for the intended operation. The pad should be placed on stable ground and used in accordance with the equipment manufacturer’s safety instructions. It should not be treated as a substitute for proper site preparation or professional load assessment.

Manufacturing Support from Dezhou Yiyuan New Material Technology Co., Ltd.

Dezhou Yiyuan New Material Technology Co., Ltd. specializes in rubber and plastic products, including UHMWPE sheets, UHMWPE wear-resistant liners, UHMWPE rollers, custom UHMWPE parts, PE sheets, PP sheets, nylon products, polyurethane products, and machined special-shaped components. The company follows a service principle centered on quality, honest sales service, and trustworthy contractual cooperation.

Whether the requirement is for Outrigger pads for construction machinery, coal bunker liners, silo liners, port fender boards, food machinery pads, or custom wear parts, material selection and machining can be aligned with the operating environment and component design. This practical approach helps customers obtain durable, application-appropriate UHMWPE solutions without unnecessary complexity.
