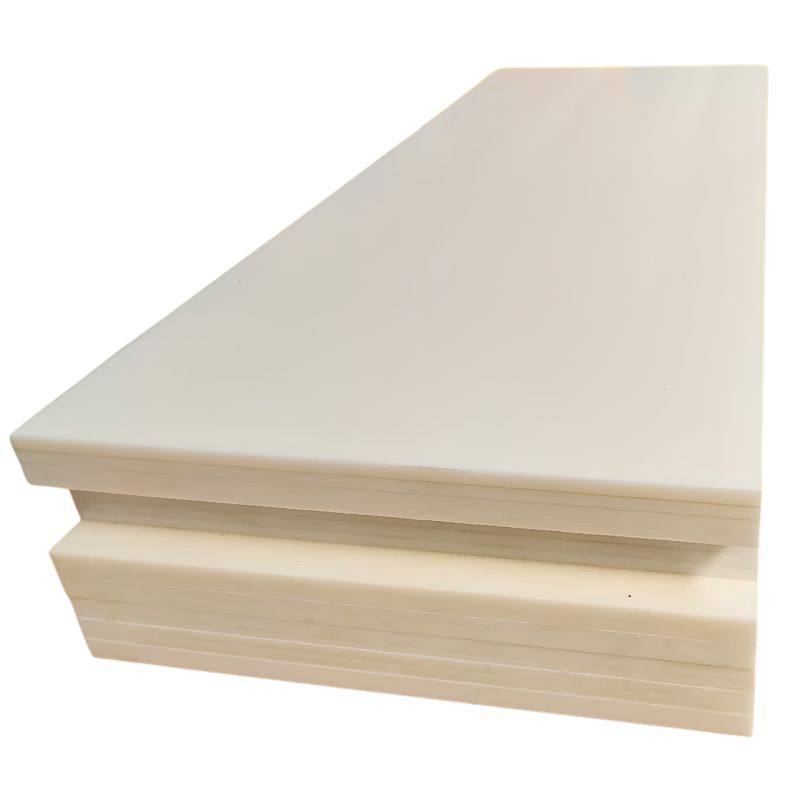

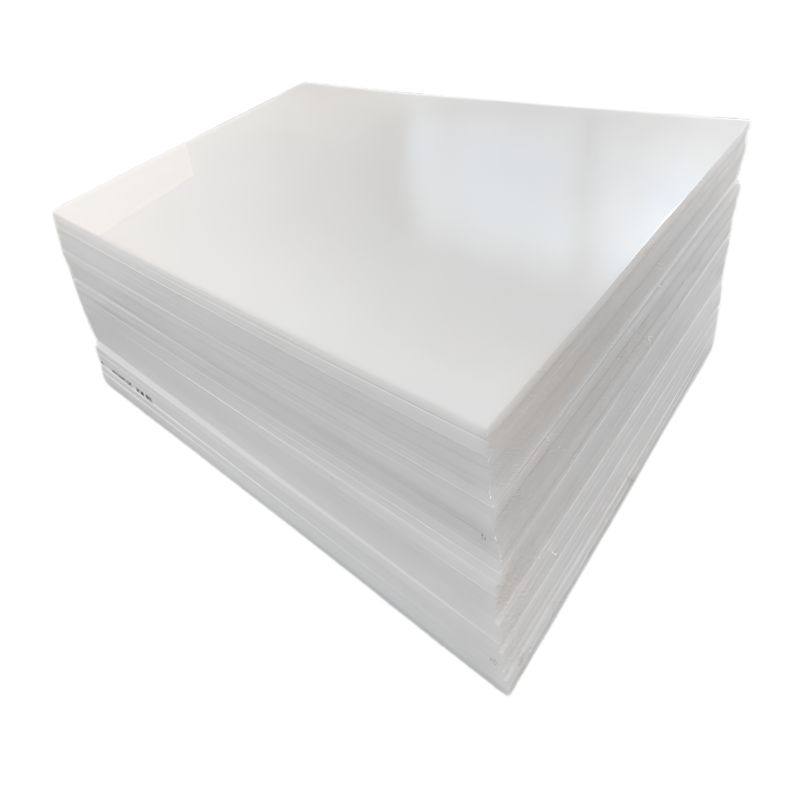

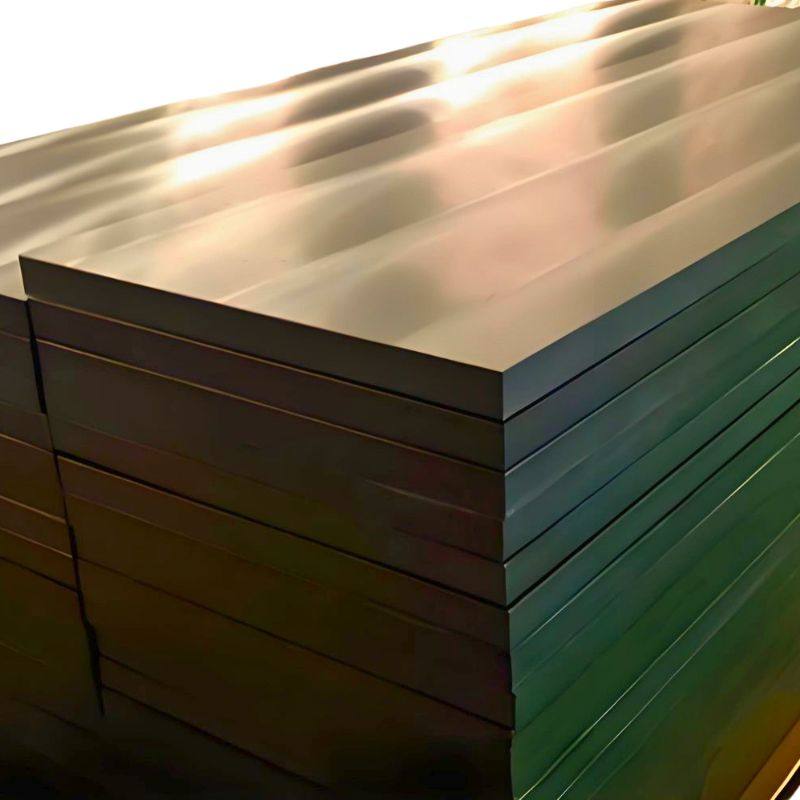

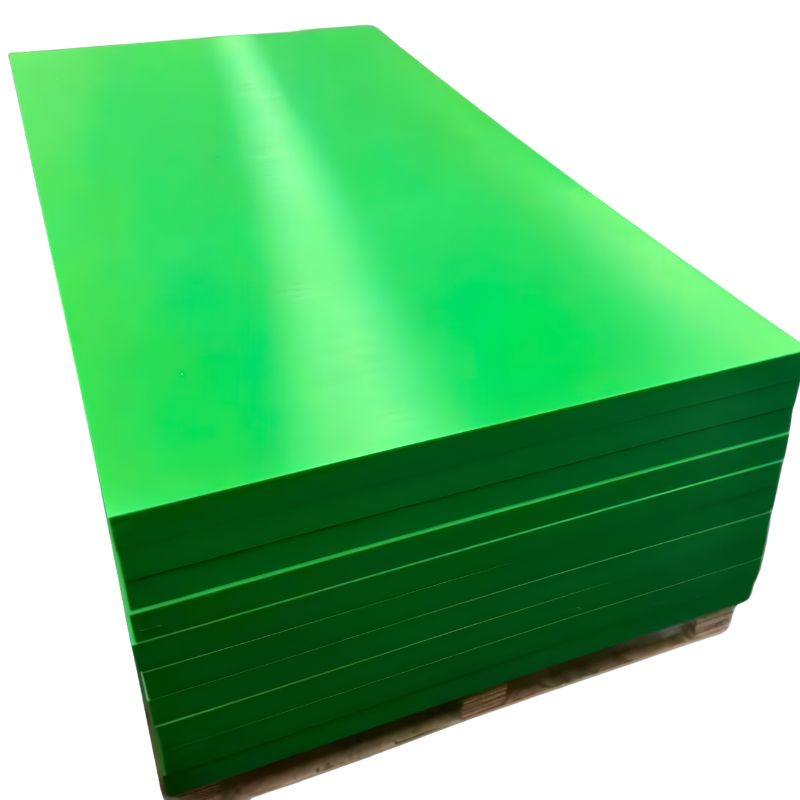

UHMWPE Sheets for Material Handling

Product Parameters

Material Performance, Applications, and Processing Options

Ultra-high molecular weight polyethylene is an engineering plastic produced from polyethylene resin with a molecular weight above 1.5 million. Its exceptional wear resistance, impact strength, and naturally low surface friction make it a practical choice wherever bulk materials must slide, discharge, transfer, or withstand repeated contact. UHMWPE Sheets for Material Handling are particularly effective in operations where conventional steel liners encourage buildup, create excessive noise, or wear prematurely under abrasive loads.

Designed to Improve Material Flow

In bins, hoppers, chutes, and transfer points, material flow is often interrupted by bridging, hang-up, and wall adhesion. A low-friction liner helps reduce these problems at the contact surface. With a dynamic friction coefficient of 0.07–0.20, this material provides a self-lubricating sliding surface without requiring routine external lubrication. Coal, sand, ore, aggregates, grain-related materials, and other bulk media can move more smoothly, helping operators reduce residue accumulation and unplanned cleaning work.

The sheet’s water absorption of no more than 0.01% is important in damp, washdown, wastewater, and outdoor environments. Unlike materials that may swell or lose dimensional stability after prolonged moisture exposure, UHMWPE maintains dependable performance in humid service conditions. Its resistance to acids, alkalis, salts, and many chemical media also makes it suitable for corrosion-prone locations where metal surfaces require frequent maintenance or protective coatings.

Key Advantages for Demanding Equipment

• Outstanding abrasion resistance: The material offers wear performance beyond carbon steel, nylon, and standard PE sheet in many abrasive sliding applications. It is well suited to high-contact zones exposed to mineral, aggregate, or particulate movement.
• High impact resistance: Repeated loading, falling material, and equipment contact can damage brittle liners. UHMWPE retains toughness and resists cracking, including in low-temperature environments.
• Low-friction self-lubrication: The smooth surface supports material release and reduces drag. This can be especially valuable for coal bunkers, storage silos, and transfer chutes where sticking causes downtime.
• Chemical and moisture resistance: The sheet does not readily absorb water and can be used in wastewater, chemical processing, and wet handling areas.
• Reliable cold-weather performance: Within its stated operating range of -269°C to 80°C, the material maintains useful toughness in cold service conditions where some plastics become brittle.

Common Installation and End-Use Areas

UHMWPE Sheets for Material Handling can be specified as protective liners, sliding pads, wear strips, and fabricated machine components. For bulk storage systems, they are commonly installed as coal bunker liners, silo liners, hopper liners, and chute liners to reduce material sticking and blockage. In mining and quarrying, they protect high-wear surfaces in ore handling, sand processing, and aggregate transfer equipment. Their impact resistance also makes them useful where conveyed material drops onto liners or where equipment sees repeated mechanical contact.

1. Coal bunkers, silos, and hoppers: Helps limit buildup, bridging, and blocked discharge caused by sticky or damp bulk material.
2. Mining and aggregate plants: Provides a durable wear surface for chutes, transfer points, stockpile equipment, and abrasive material paths.
3. Port and marine facilities: Can be used for fender panels and low-friction protective contact surfaces exposed to moisture and impact.
4. Wastewater treatment systems: Supports corrosion-resistant lining needs in wet or chemically active environments.
5. Food machinery: Suitable for pads, guides, and other wear components where a smooth, moisture-resistant surface is beneficial.
6. Construction and mobile equipment: Used as outrigger pads, support pads, sliding blocks, and protective components.
7. Sports and general industrial components: Can be fabricated into football rebound boards, sliders, spacers, pads, and custom wear parts.

Fabrication Flexibility for Custom Parts

Every handling line has different mounting points, wear zones, and clearance requirements. The material can be cut, drilled, grooved, heat-bent, and welded to support project-specific installation. Custom dimensions, thicknesses, colors, and logo engraving are available to help customers match equipment layouts and identification requirements. This flexibility allows a flat sheet to become a fitted liner, shaped guide, support block, or non-standard wear component without changing the base material’s essential low-friction and wear-resistant qualities.

Selection Considerations

For the best service life, the sheet should be selected according to material abrasiveness, impact load, operating temperature, fastening method, and surface geometry. It is not intended for sustained high-temperature environments, as its heat resistance is limited compared with specialized high-temperature engineering plastics. In addition, UHMWPE has relatively low surface hardness; sharp, hard objects may scratch the sheet surface. These characteristics should be assessed during material selection, especially in applications involving hot media, exposed cutting edges, or concentrated point loading.

Manufacturing Support You Can Rely On

Dezhou Yiyuan New Material Technology Co., Ltd. specializes in rubber and plastic products, including UHMWPE sheets, wear liners, rollers, custom-shaped UHMWPE parts, PE sheets, PP sheets, nylon products, polyurethane products, and machined special components. Our service principle is straightforward: quality first, sincere service, and trustworthy contract performance. For liner replacement projects, new equipment builds, or custom wear-part requirements, our team can support practical material selection and fabrication based on your operating conditions.
