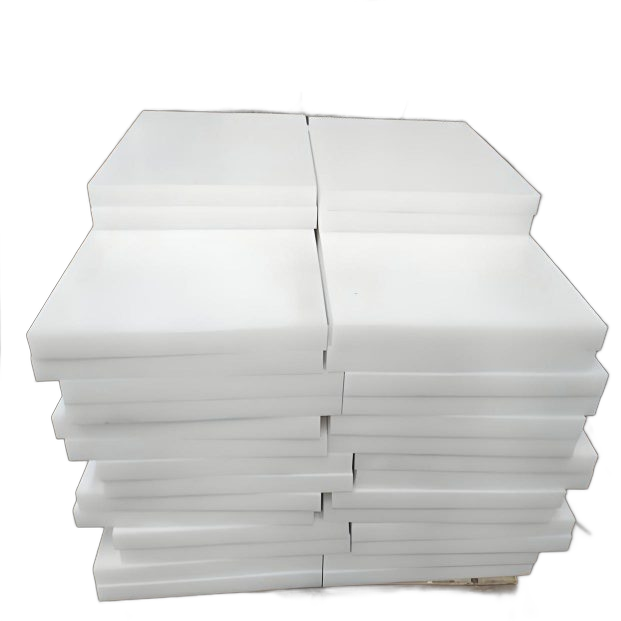

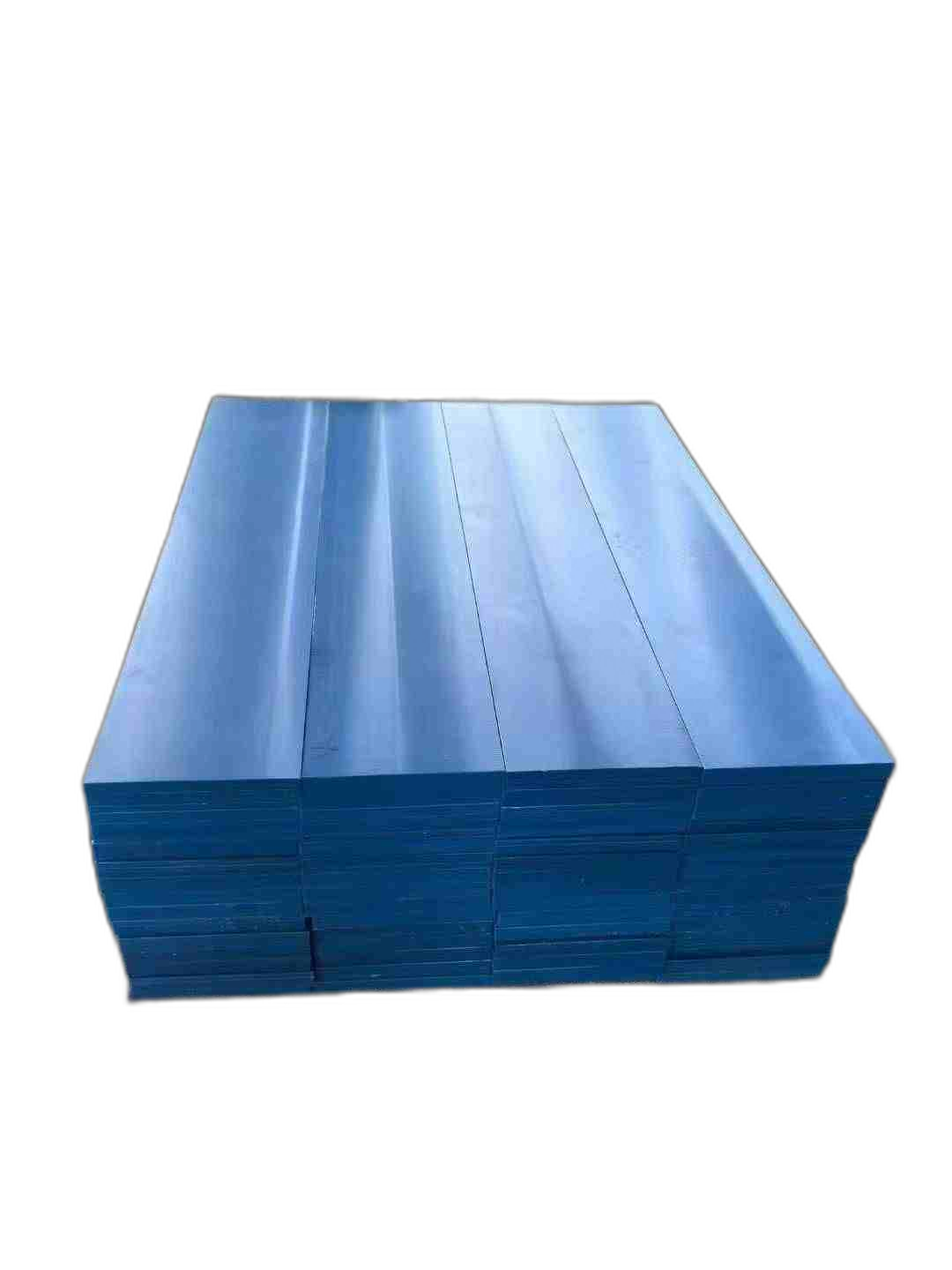

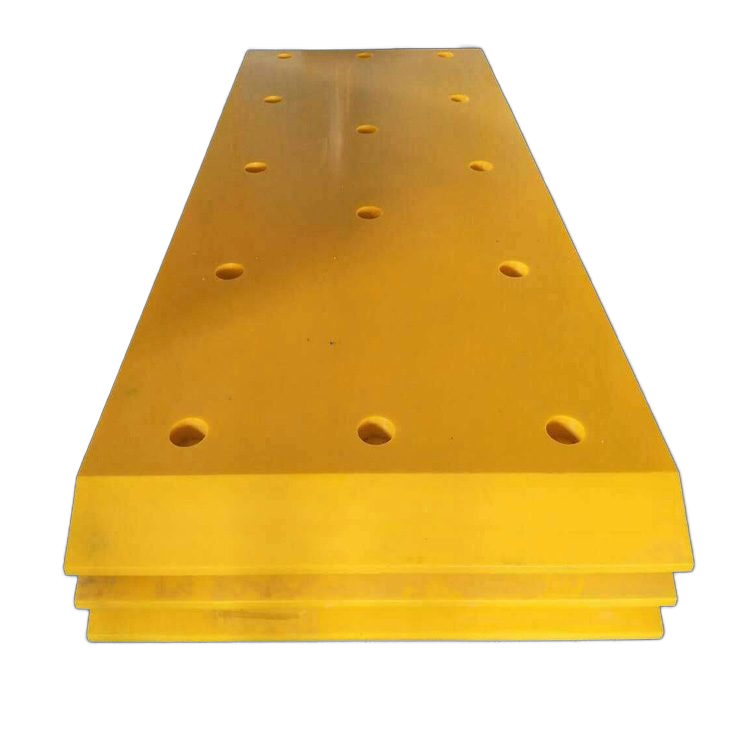

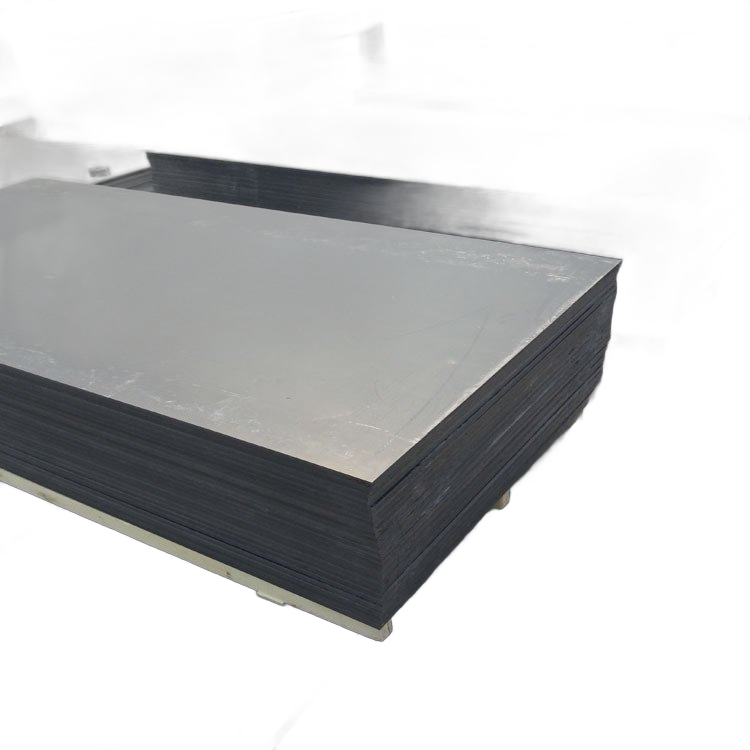

UHMWPE Sheets for Mining Wear Liners

Product Parameters

These engineering polymer sheets are manufactured from ultra-high molecular weight polyethylene, providing a practical lining solution for material-handling areas where abrasion, impact, moisture, and material build-up can reduce operating efficiency.

Detailed Product Introduction

In mining and bulk-material handling, liner selection directly affects throughput, maintenance frequency, and equipment availability. Ore, coal, sand, gravel, and wet fines can repeatedly strike, slide across, and compact inside hoppers, chutes, transfer points, bunkers, and stock bins. Conventional steel surfaces may wear quickly, corrode, or encourage material to bridge and stick. UHMWPE sheet provides a lighter, low-friction alternative for these demanding contact zones.

Wear-resistant liners for mining applications made from UHMWPE are particularly suitable where a smooth sliding surface is needed to improve material flow. The polymer’s naturally self-lubricating behavior, supported by a dynamic friction coefficient of 0.07–0.2, helps reduce drag between conveyed material and the liner face. This can assist the movement of sticky, damp, or fine-grained materials and helps limit the build-up that commonly contributes to blocked discharge points.

Why UHMWPE Performs in Abrasive Handling Areas

The material is produced from polyethylene with a molecular weight above 1.5 million; this grade is specified at 3 million–5 million. Its long molecular chains contribute to strong wear resistance and excellent impact behavior. Compared with carbon steel, nylon, and standard PE sheet, UHMWPE is widely selected for applications requiring a lower-friction contact surface and improved resistance to abrasive material flow.

• High wear resistance: Suitable for sliding and rubbing contact with coal, mineral ore, aggregate, and other abrasive bulk materials.
• Excellent impact resistance: Maintains toughness under repeated material impact and is less prone to brittle cracking in low-temperature conditions.
• Low-friction, self-lubricating surface: Helps materials slide more freely and reduces the likelihood of adhesion and blockage.
• Very low moisture uptake: With water absorption of ≤0.01%, the sheet is well suited to wet, humid, and wastewater-related environments.
• Chemical resistance: Resists many acid, alkali, and salt environments, supporting long-term use in corrosive process areas.
• Low-temperature capability: Designed for the stated -269°C to 80°C operating range, making it relevant to cold outdoor installations where toughness is important.

Mining Liner Applications

For mine operators, quarry managers, and maintenance contractors, the primary value of a liner is not simply surface protection. A properly selected liner can help maintain flow, reduce wear on the supporting equipment structure, and make planned maintenance more predictable. Wear-resistant liners for mining applications can be installed in locations where bulk material repeatedly contacts a metal substrate or where carryback and material accumulation interfere with production.

1. Coal bunkers and coal storage bins: Helps reduce coal sticking, arching, and blockage along hopper walls and discharge sections.
2. Ore chutes and transfer chutes: Protects surfaces exposed to continuous sliding abrasion and intermittent impact from mined material.
3. Aggregate and sand processing plants: Suitable for liners in hoppers, bins, feed areas, and material-guiding components.
4. Bulk storage silos: Provides a low-friction lining option for coal, mineral, grain-like, or powder-handling storage systems where permitted by operating conditions.
5. Port and loading facilities: Can be used for fender boards and material-contact parts exposed to moisture and bulk cargo handling.
6. Wastewater and chemical environments: Useful as corrosion-resistant protective sheet material where water, salts, or compatible chemical media are present.

Fabrication and Installation Flexibility

UHMWPE sheets can be cut, drilled, grooved, heat bent, and welded to meet the geometry of practical equipment. This flexibility is valuable when lining chute transitions, irregular hopper walls, curved surfaces, or localized high-wear zones. Sheets may also be supplied in customized dimensions and colors, and logos can be engraved when identification or asset-management marking is required.

Before installation, the liner layout should account for material flow direction, impact concentration, support condition, expansion allowance, and fastening access. In high-impact areas, the liner should be evaluated as part of the full equipment design rather than treated as a universal replacement for structural wear plate. Correct mounting and joint positioning help maintain a smooth flow path and reduce opportunities for material to catch at edges.

Important Selection Considerations

UHMWPE is not intended for every service environment. Its heat resistance is limited compared with high-temperature engineering materials, so it is not recommended for sustained high-temperature conditions above the stated operating range. The material also does not have high surface hardness; sharp, hard objects may scratch the sheet surface. For this reason, operating temperature, particle shape, impact severity, and exposure conditions should be reviewed before specification.

Dezhou Yiyuan New Material Technology Co., Ltd. specializes in rubber and plastic products, including UHMWPE sheets, UHMWPE wear liners, UHMWPE rollers, custom UHMWPE components, PE sheets, PP sheets, nylon products, polyurethane products, and machined special-shaped parts. The company follows a service principle of pursuing quality in production, honesty in sales service, and trust in contractual cooperation. This product range supports customers seeking practical, application-specific polymer components for mining, port, industrial, food-processing, and wastewater-handling equipment.

A Practical Choice for Flow and Surface Protection

When abrasion, moisture, impact, and poor material flow occur together, UHMWPE lining provides a balanced solution. Its low density of 0.94–0.96 g/cm³, minimal water absorption, self-lubricating surface, and impact toughness make it a dependable option for many non-high-temperature handling systems. The final liner design should always be matched to the actual material, operating temperature, equipment geometry, and maintenance requirements of the site.
